MS Plate Weight Chart in Kg M2
Download MS Plate Weight Chart PDF
| Plate thickness (mm) | Weight (kg/m) | kg/meter (width 1200mm) | kg/meter (width 1500mm) | kg/meter (width 1800mm) | kg/meter (width 2400mm) |
| 3 | 23.55 | 28.3 | 35.3 | 42.4 | 56.5 |
| 4 | 31.4 | 37.7 | 47.1 | 56.5 | 75.4 |
| 5 | 39.25 | 47.1 | 58.9 | 70.7 | 94.2 |
| 6 | 47.1 | 56.5 | 70.7 | 84.8 | 113 |
| 8 | 62.8 | 75.4 | 94.2 | 113 | 150.7 |
| 10 | 78.5 | 94 | 118 | 141 | 188 |
| 12 | 94.2 | 113 | 141 | 170 | 226 |
| 16 | 125.6 | 151 | 188 | 226 | 301 |
| 20 | 157 | 188 | 236 | 283 | 377 |
| 22 | 172.7 | 207 | 259 | 311 | 415 |
| 25 | 196.25 | 236 | 294 | 353 | 471 |
| 28 | 219.8 | 264 | 330 | 396 | 528 |
| 32 | 251.2 | 301 | 377 | 452 | 603 |
| 36 | 282.6 | 339 | 424 | 509 | 678 |
| 40 | 314 | 377 | 471 | 565 | 754 |
| 45 | 353.25 | 424 | 530 | 636 | 848 |
| 50 | 392.5 | 471 | 589 | 707 | 942 |
| 55 | 431.75 | 518 | 648 | 777 | 1036 |
| 60 | 471 | 565 | 707 | 848 | 1130 |
| 65 | 510 | 612 | 765 | 918 | 1224 |
| 70 | 549.5 | 659 | 824 | 989 | 1319 |
| 75 | 588.75 | 707 | 883 | 1060 | 1413 |
| 80 | 628 | 754 | 942 | 1130 | 1507 |
| 90 | 706.5 | 848 | 1060 | 1272 | 1696 |
| 100 | 785 | 942 | 1178 | 1413 | 1884 |
MS Plate Weight Chart, MS Plate Weight Chart in Kg M2, MS Plate Weight Chart in MM, MS Plate Weight Chart in Kg
Check Our MS Plate Weight Calculator Online in KG
Single Piece Weight: 0.00 kg
Total Weight: 0.00 kg
Best MS Plate Weight Calculator Online, MS Plate Weight Calculator, 10 MM MS Plate Weight Calculator, MS Plate Weight Calculator in Kg
MS Plate Weight Chart Per Square Meter
Download PDF MS Plate Weight Per Sqm
| Plate thickness (mm) | Weight (kg/m2) |
| 1.6 | 12.6 |
| 2 | 15.7 |
| 2.5 | 19.6 |
| 3 | 23.6 |
| 3.2 | 25.1 |
| 4 | 31.4 |
| 5 | 39.3 |
| 6 | 47.1 |
| 8 | 62.8 |
| 10 | 78.5 |
| 12.5 | 98.1 |
| 15 | 118 |
| 20 | 157 |
| 22.5 | 177 |
| 25 | 196 |
| 30 | 236 |
| 32 | 251 |
| 35 | 275 |
| 40 | 314 |
| 45 | 353 |
| 50 | 393 |
| 55 | 432 |
| 60 | 471 |
| 65 | 510 |
| 70 | 550 |
| 75 | 589 |
| 80 | 628 |
| 90 | 707 |
| 100 | 785 |
| 110 | 864 |
| 120 | 942 |
| 130 | 1051 |
| 150 | 1178 |
| 160 | 1256 |
| 180 | 1413 |
| 200 | 1570 |
| 250 | 1963 |
View our MS Plate Unit Weight Per Sqm, 3 Mm Ms Plate Weight Per Sqm , 10 Mm Ms Plate Weight Per Square Meter
How to calculate weight of MS plate?

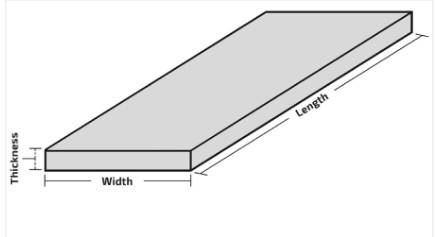

To calculate the weight of an MS (Mild Steel) plate, you need to know its dimensions (length, width, and thickness) and the density of mild steel, which is approximately 7850 kg/m³. The formula to calculate the weight is:
Weight = Length (m) × Width (m) × Thickness (m) × Density (kg/m³)
For example, if you have a plate that is 2 meters long, 1 meter wide, and 5mm thick (0.005m), the calculation would be:
Weight = 2 × 1 × 0.005 × 7850 = 78.5 kg
This gives the total weight of the plate in kilograms.
What is the MS plate weight calculation formula?
The standard formula used for MS plate weight calculation is:
Weight (kg) = Length (m) × Width (m) × Thickness (m) × Density (kg/m³) Where:
- Length and Width are the dimensions of the plate in meters
- Thickness is the plate's thickness in meters (1mm = 0.001m).
- Density for mild steel is approximately 7850 kg/m³.
This formula is widely used and applicable for any size and thickness of MS plates.
Where can I download an MS plate weight calculation formula PDF?
You can download a ready-made MS Plate Weight Calculation Formula PDF from resources provided on industry websites or suppliers of steel products. These PDFs often include:
- Detailed formulas
- Weight calculation examples
- Pre-calculated weight charts for standard MS plate sizes.
Such PDFs are especially helpful for professionals in construction, fabrication, and manufacturing. Check websites like construction material suppliers or steel manufacturers’ platforms for free downloads.
How can I obtain an MS plate weight calculation chart?
An MS Plate Weight Calculation Chart provides pre-calculated weights for various plate sizes and thicknesses. These charts simplify the process by listing standard weights in kilograms per square meter or length. For example:
- 6mm thickness = 47.1 kg/m²
- 10mm thickness = 78.5 kg/m²
You can:
- Visit steel supplier websites to download the charts.
- Access physical brochures or catalogs from steel manufacturers.
- Check linked resources or download sections where weight charts are provided in PDF format.
These charts are time-saving tools, especially for bulk material estimation.
How accurate is the MS plate weight calculation chart?
The MS Plate Weight Calculation Chart is highly accurate as it is based on standard formulas and the density of mild steel (7850 kg/m³). However, variations may occur if non-standard alloys or deviations in density are used. Always ensure:
- You consider the exact dimensions and specifications of your steel plate.
- Use reputable sources for your weight charts, such as leading steel suppliers or manufacturing companies.
These charts are reliable for most general construction and fabrication needs.
Why is knowing MS plate weight important?
Knowing the weight of an MS plate is essential for:
- Cost Calculations: Steel prices are charged per kilogram, making weight critical for budgeting.
- Transport Planning: Accurate weight helps prevent overloading and ensures compliance with logistics restrictions.
- Project Safety: Precise weight contributes to the structural integrity of buildings or fabricated elements.
- Ease of Handling: nowing the load enables safe material lifting and transportation.
Accurate calculations help streamline project planning and execution in industries like construction and manufacturing.
How To Calculate Ms Plate Weight in Kg
To accurately calculate the weight of an MS plate in kilograms:
Formula: Weight (kg)=Length (m)×Width (m)×Thickness (m)×7850
For dimensions in mm
Example Calculation:
- Length = 2000 mm
- Width = 1000 mm
- Thickness = 10 mm
This method is accurate for standard MS plates.
